Vertical Shaft Impact VCII Sand Making Machine River Gravel Simple Structure
VCII sand making machine application
Vertical shaft impact crusher is widely used in all kinds of mineral, cement, corhart, bauxite chmotte, carborundum grain, glass raw material, machine made construction sand, stone stock and all kinds of metallurgy slag, especially carborundum, sintered bauxite, magnesite, and so on material with features of very hard and anticorrosion. And Sand Making Machine is more productive than other kind of crushers.
Features:
(1)Deep cavity design enables bigger inner space of impeller, therefore more throughput capacity and higher efficiency;
(2)Reasonable inner structure, the material liner forms on the chamber wall, which could effectively extend the service life of impeller and wearing parts, reduce usage cost;
(3)High, middle and low speed grades are optional, which amplify the crusher efficiency, and combine crushing, sand making, re-shaping functions as one;
(4)The wear-resistant plate and surfacing on the impeller upper plate provide dual protection, which ensure the impeller safety and repeating use;
(5)Higher manufacturing accuracy and dynamic, static balancing technology make the impeller outstanding in unbalance resistance;
(6)Modularized wearing parts design ensures high generality, less wearing parts type and convenient wearing parts replacement.

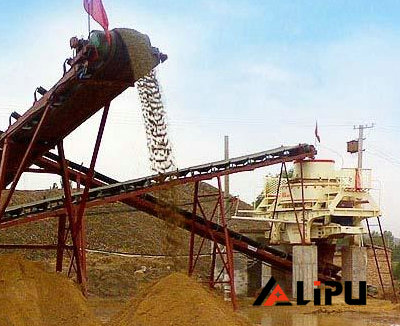

Working Site:
Technical Parameter :
| Model | VCⅡ7515 | VCⅡ8622 | VCⅡ9532 | VCⅡ1145 |
| Capacity(t/h) | Center feeding | 70-150 | 120-220 | 170-320 | 260-450 |
| Center and side feeding | 90-200 | 150-290 | 220-420 | 340-590 |
| Max. Feed Size(mm) | 40 | 50 | 50 | 50 |
| Double Motor Power(kW) | 110-150 | 180-220 | 260-320 | 400-440 |
| Overall Dimension/L×W×H(mm) | 4100×2000×3200 | 4500×2100×3400 | 4800×2250×3800 | 5200×2400×4200 |
| Transportation Dimension/ L×W×H(mm) | 4100×2000×2100 | 4500×2100×2200 | 4800×2250×2600 | 5200×2400×2850 |
| Weight(t) | stone strike stone” crushing cavity | 7.8 | 9.2 | 12 | 15 |
| stone strike iron” crushing cavity | 8.9 | 10.5 | 13.8 | 17.5 |
| Thin Oil Lubrication Station | Double Oil Pump Power(kW) | 2×0.37 |
| Safety Protection | Double Oil Pump feed each other; Automatic shutdown when no oil return; Water cooling system; Automatic heating in low temperature. |
| Oil Tank Heating Power(kW) | 2 |
| Overall Dimension/L ×W×H(mm) | 820×520×1270 |
Product Picture Show :
